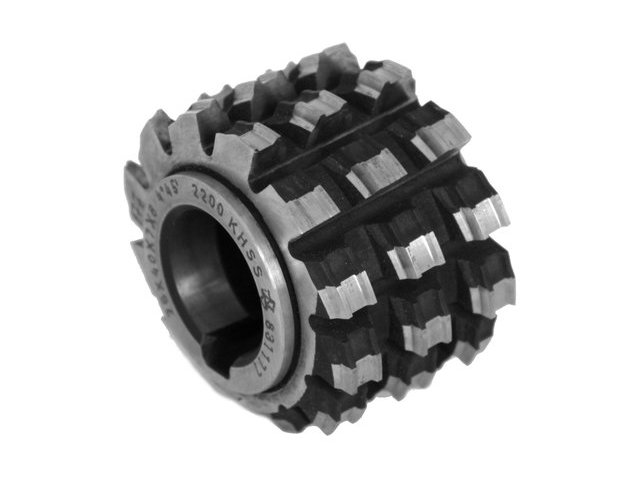

For involute spline shafts according to DIN 5482

reference profile acc. to DIN 5482
pressure angle α = 30°
accuracy class "A" acc. to DIN 3968
single start, right-hand with keyway slot acc. to DIN 138
HSS-E (EMo5Co5)

Module	Spline shafts size		Hob size
Module	-from	-to	D	d	L	l	z
mm	mm
1,6	15 x 12	25 x 22	56	22	38	4	12
1,75	28 x 25	35 x 31	56	22	38	4	12
1,9	38 x 34	42 x 38	63	27	46	4	12
2	45 x 41	60 x 55	63	27	46	4	12
2,1	62 x 57	80 x 74	63	27	46	4	12
2,25	82 x 76	100 x 94	70	27	56	4	12
