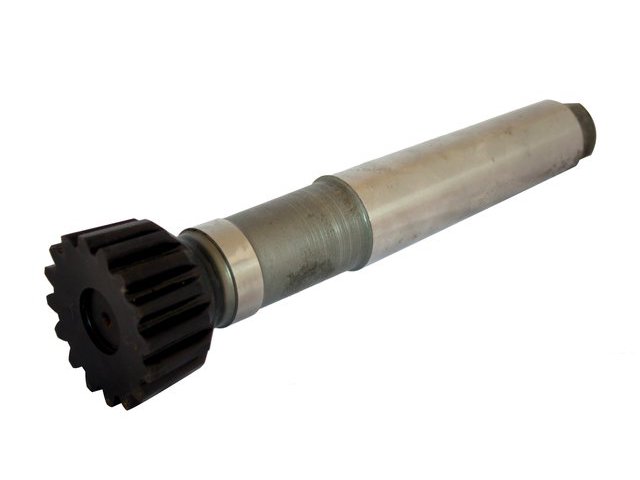

Shank type according to DIN 5480

• Pressure Angle α = 30°
• Mkk2 shortened Morse Taper
• Basic profile according to DIN 5780
• Ground profile, quality class "A"
• HSS-E (EMo5Co5)

Module	Cutter no. of teeth	Nominal diameter	Main sizes		Shank	Teeth no. of Workpiece
	zo	do	b min	lo	Morse	z2min
mm		mm
1	10	10	9	100	MKK 2	16
1,25	10	12,5	11
1,5	10	15	12
2	10	20	14
