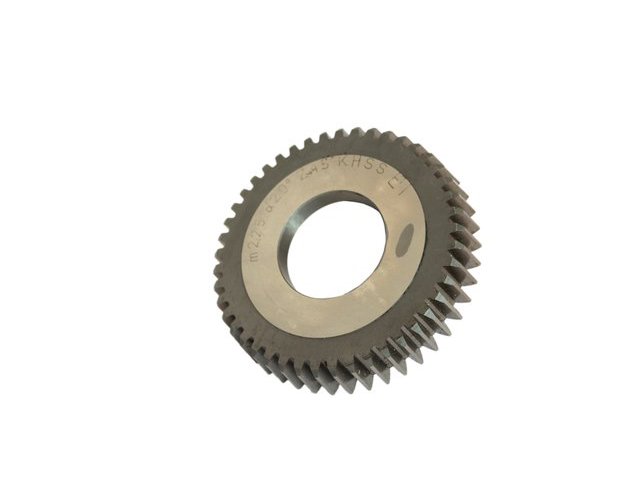

Disc type according to DIN 1825
Nominal pitch diameter: ø75, Bore: ø31.745
| Module | Cutter no. of teeth | Pitch diam. | Main sizes | ||
|---|---|---|---|---|---|
| m | zo | do | b min. | d2 | d3 |
| mm | |||||
| mm | |||||
| 1 | 76 | 76 | 16 | 50 | 31,745 |
| 1,25 | 61 | 76,25 | 16 | 50 | |
| 1,5 | 51 | 76,5 | 18 | 50 | |
| 1,75 | 43 | 75,25 | 18 | 50 | |
| 2 | 38 | 76 | 20 | 50 | |
| 2,5 | 30 | 75 | 20 | 45 | |
| 3 | 25 | 75 | 22 | 45 | |
- Pressure Angle α = 20°
- Basic profile II. acc. to DIN 3972
- Ground profile, quality class “A” acc. to DIN 1829
- HSS-E (EMo5Co5)
Nominal pitch diameter: ø100, Bore: ø44.45
| Module | Cutter no. of teeth | Pitch diam. | Main sizes | ||
|---|---|---|---|---|---|
| m | zo | do | b min. | d2 | d3 |
| mm | |||||
| mm | |||||
| 2 | 50 | 100 | 20 | 70 | 44,45 |
| 2,5 | 40 | 100 | 20 | 70 | |
| 3 | 33 | 99 | 24 | 65 | |
| 3,5 | 29 | 101,5 | 24 | 65 | |
| 4 | 25 | 100 | 24 | 60 | |
| 5 | 20 | 100 | 24 | 60 | |
- Pressure Angle α = 20°
- Basic profile II. acc. to DIN 3972
- Ground profile, quality class “A” acc. to DIN 1829
- HSS-E (EMo5Co5)
