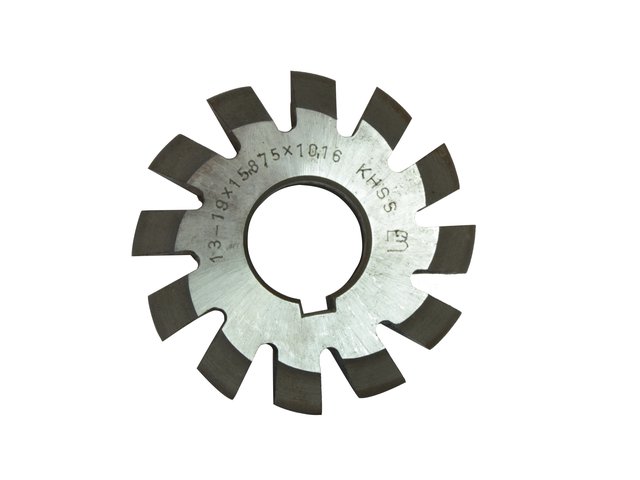

Cutters for roller chain sprockets according to DIN 8196

To roller and sleeve chains acc. to DIN 8187 and 8188

• available in 3-piece set or one-by-one
• reference profile according to DIN 8198
• relieved with keyway slot according to DIN 138
• HSS (EMo5) or HSS-E (EMo5Co5)

pitch	pitch	roller ø	D	d	z	Ordering info
inch	mm
	5	3,2	63	22	14	In case of an order please add the cutter no.
15 / 64”	6	4	63	22	14
5 / 16”	8	5	63	22	14
3 / 8”	9,525	6,35	70	22	14
1 / 2”	12,7	7,75	70	22	14
1 / 2”	12,7	8,51	70	22	14
5 / 8”	15,875	10,16	90	22	14
3 / 4”	19,05	11,91 / 12,07	90	22	14
1”	25,4	15,88	100	27	14
1 ¼”	31,75	19,05	110	32	12
1 ½”	38,1	22,23	125	32	12	Cutter no. / for teeth
1 ½”	38,1	25,4	125	32	12	1. 9 - 12 2. 13 - 19 3. 20 - 150
1 ¾”	44,45	25,4	140	40	12
1 ¾”	44,45	27,94	140	40	12
2”	50,8	28,58	140	40	10
2”	50,8	29,21	140	40	10
2 ½”	63,5	39,97 / 39,68	170	50	10
3”	76,2	47,63	190	50	10
3”	76,2	48,26	190	50	10
